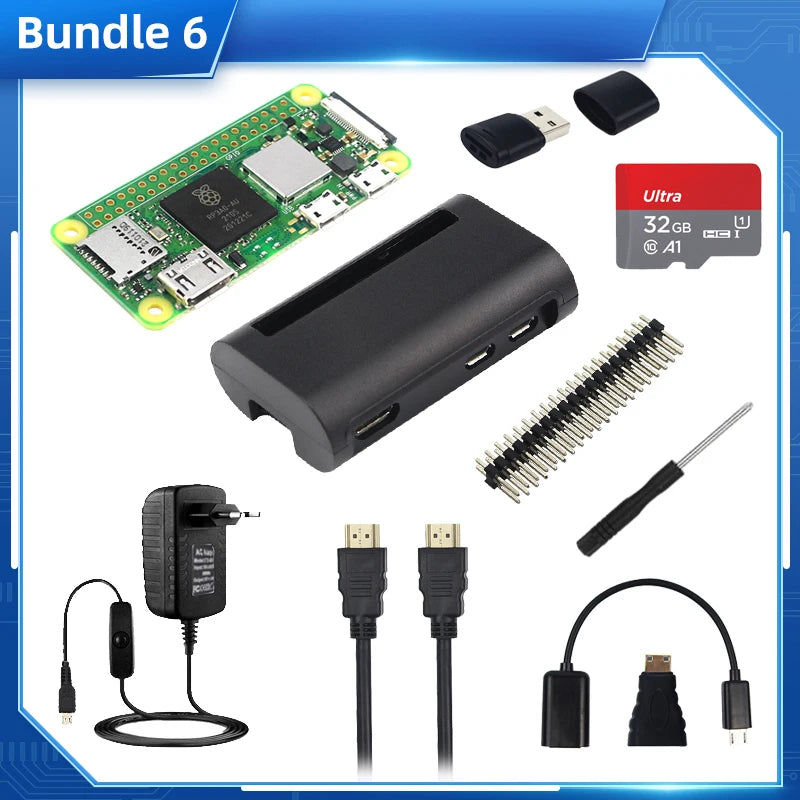

Raspberry Pi Zero 2 W Quad-core 64-bit Cortex-A53 Bluetooth BLE & WiFi Pi Zero 2 Pi 0 Bundle selection
Raspberry Pi Zero 2 W Quad-core 64-bit Cortex-A53 Bluetooth BLE & WiFi Pi Zero 2 Pi 0 Bundle selection
Couldn't load pickup availability
Introducing the Raspberry Pi Zero 2W, a compact marvel that packs a punch in a tiny form factor. This mini single-board computer is equipped with a wireless connection, featuring both Wi-Fi and Bluetooth capabilities. With its 1GHz ARM Cortex-A53 processor and 512MB of RAM, the Zero 2W is ready to tackle a variety of projects, from DIY electronics to low-power computing applications. The inclusion of a mini HDMI port and a micro-USB power input adds to its versatility. Whether you're a hobbyist, tinkerer, or professional looking for an affordable and powerful computing solution, the Raspberry Pi Zero 2W opens up a world of possibilities in a small, yet mighty package.
SPECIFICATIONS
Demo Board Type: ARM
Model Number: Raspberry Pi Zero 2 W
Memory Capacity: 512mb
Processor Brand: BROADCOM
Intergrated Feature: WiFi 802.11b/g/n
Intergrated Feature: bluetooth
Interface: TF Card Support
Interface: USB OTG
Certification: RoHS
CPU: 1GHz quad-core 64-bit Arm Cortex-A53
RAM: 512MB SDRAM
WLAN: 2.4GHz 802.11 b/g/n wireless LAN
Port: CSI-2 camera connector
Size: 65mm x 30mm

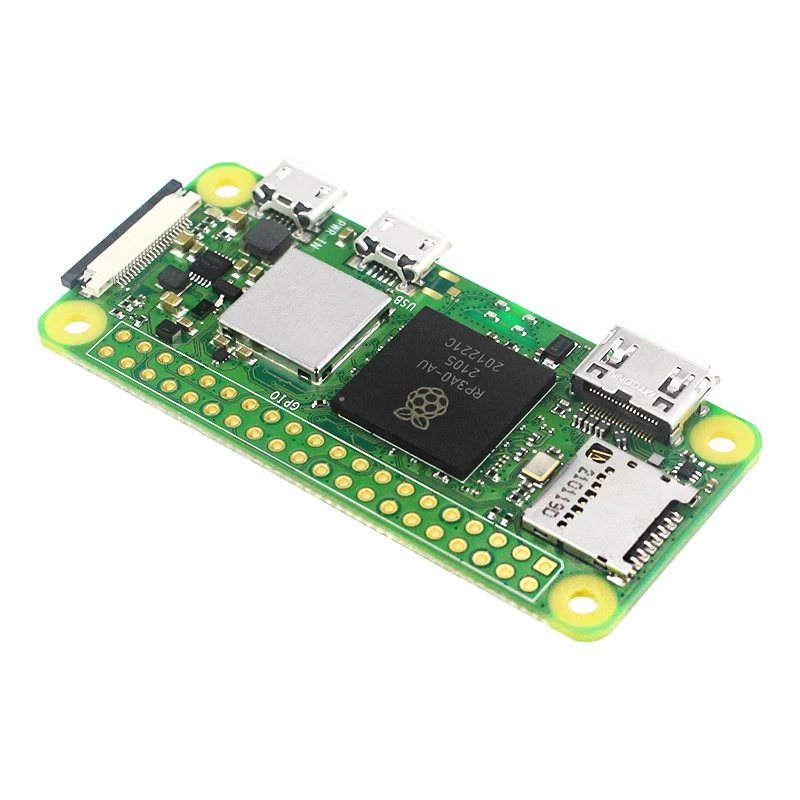

NEW Raspberry Pi Zero 2 W 1GHz Quad-core 64-bit Arm Cortex-A53 CPU 512MB SDRAM Bluetooth BLE & WiFi

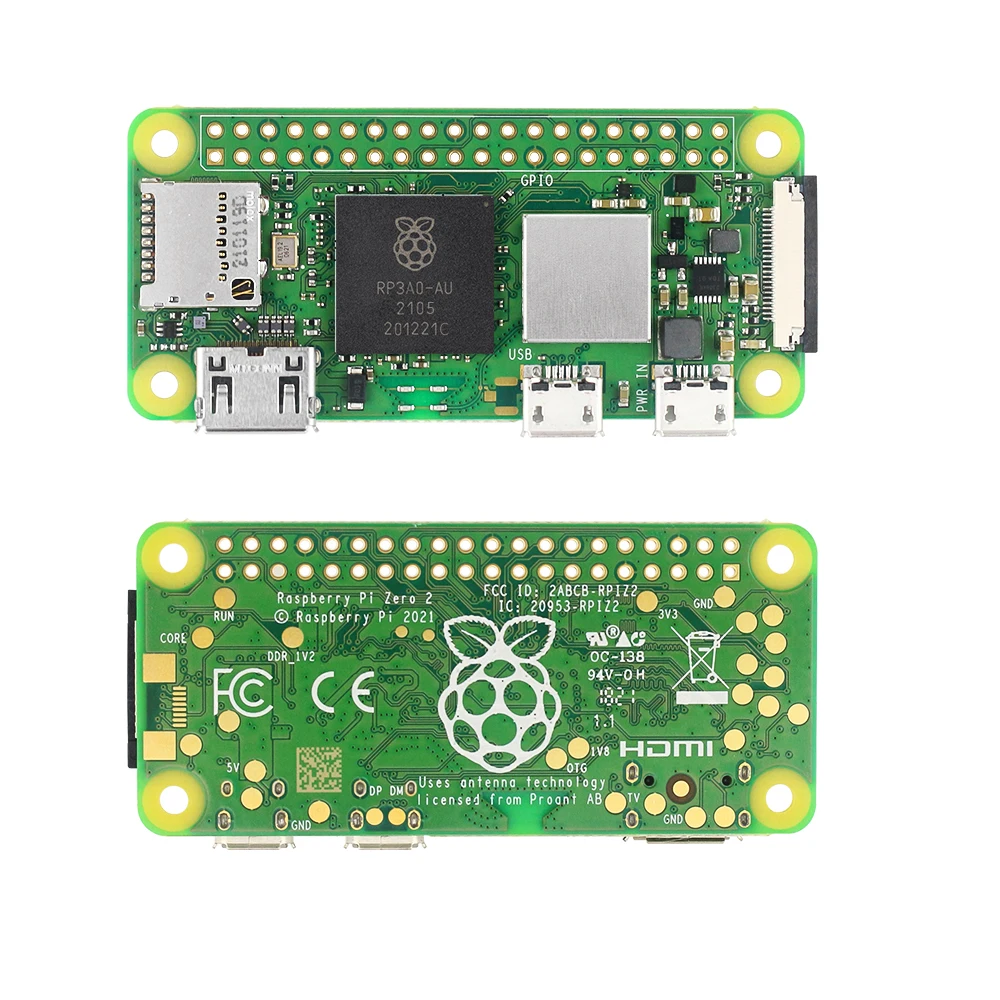

Introduction

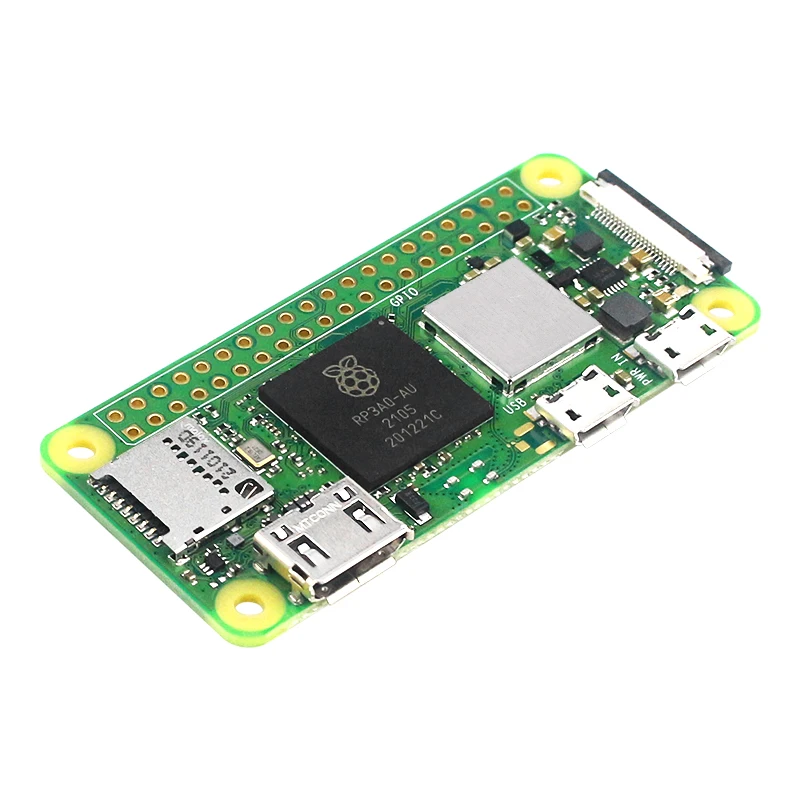

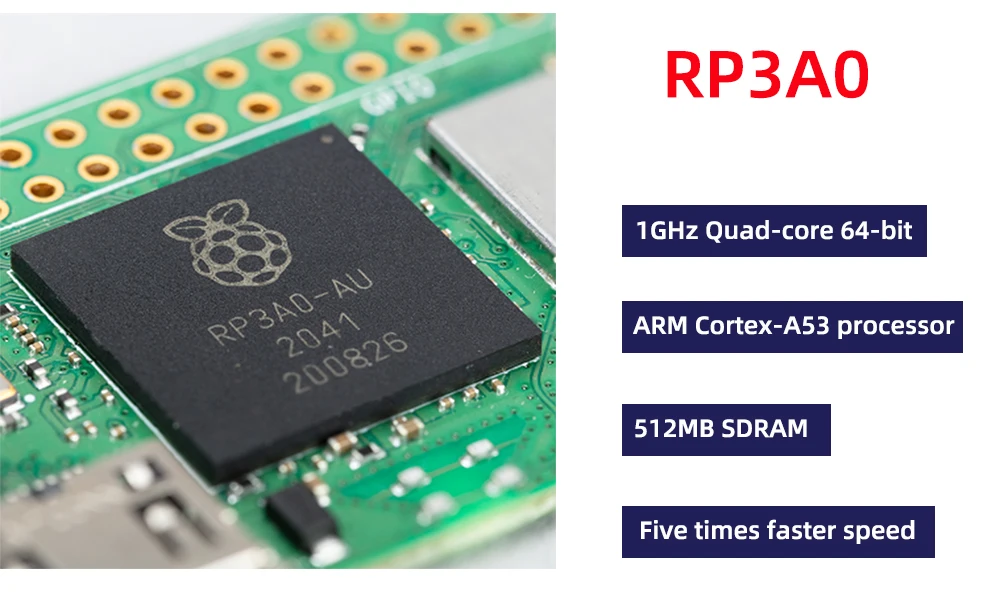

At the heart of Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero.
Wireless LAN is built in to a shielded enclosure with improved RF compliance, giving you more flexibility when designing with Raspberry Pi Zero 2 W.

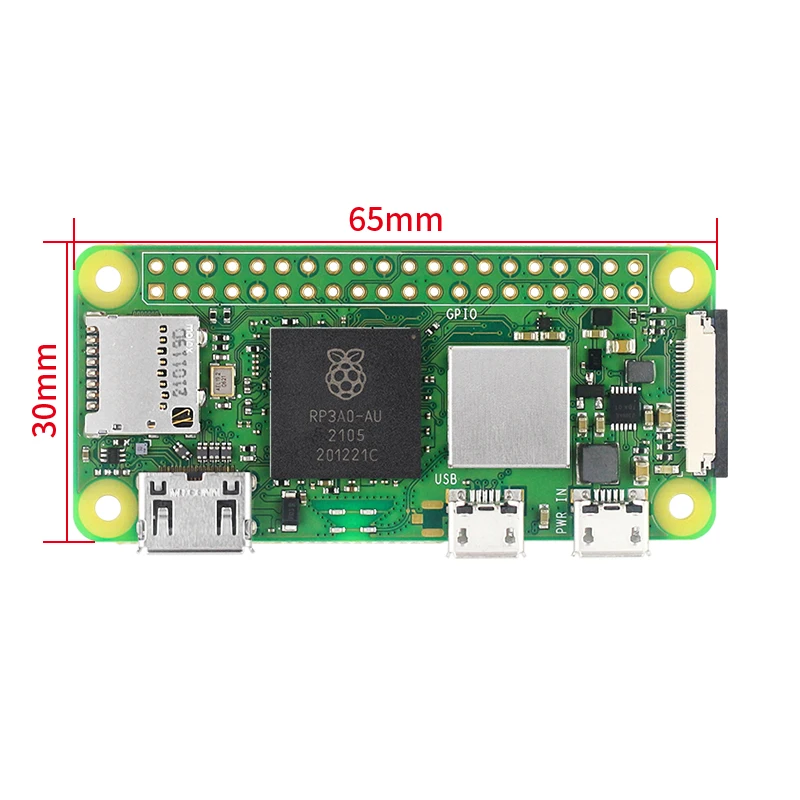

All in the same tiny 65mm × 30mm form factor.
Little genius
Raspberry Pi Zero 2 W is perfect for a range of smart home applications and other IoT projects. From security cameras to Bluetooth speakers, Zero 2 W has the tiny form factor and impressive power that make it an ideal computer for your projects.
Making connections
Like the original Raspberry Pi Zero, Raspberry Pi Zero 2 W features a mini HDMI port, a micro USB port, and a micro USB power port.
Raspberry Pi offers a wide range of high-quality, low-cost cables and adapters to get you up and running on your Raspberry Pi Zero 2 W.
Specification
Processor: Broadcom BCM2710A1, quad-core 64-bit SoC
(Arm Cortex-A53 @ 1GHz)
Memory: 512MB LPDDR2
Connectivity: • 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth-compatible 4.2, BLE,
onboard antenna
• 1 × USB 2.0 interface with OTG
• HAT-compatible 40-pin I/O header footprint
• microSD card slot
• Mini HDMI-compatible port
• CSI-2 camera connector
Video:
• HDMI-compatible interface
• Composite video
Multimedia: • H.264, MPEG-4 decode (1080p30)
• H.264 encode (1080p30)
• OpenGL ES 1.1, 2.0 graphics
Input power: 5V DC 2.5A
Operating temperature: -20°C to +70°C
Form factor: 65mm × 30mm
Photo Show

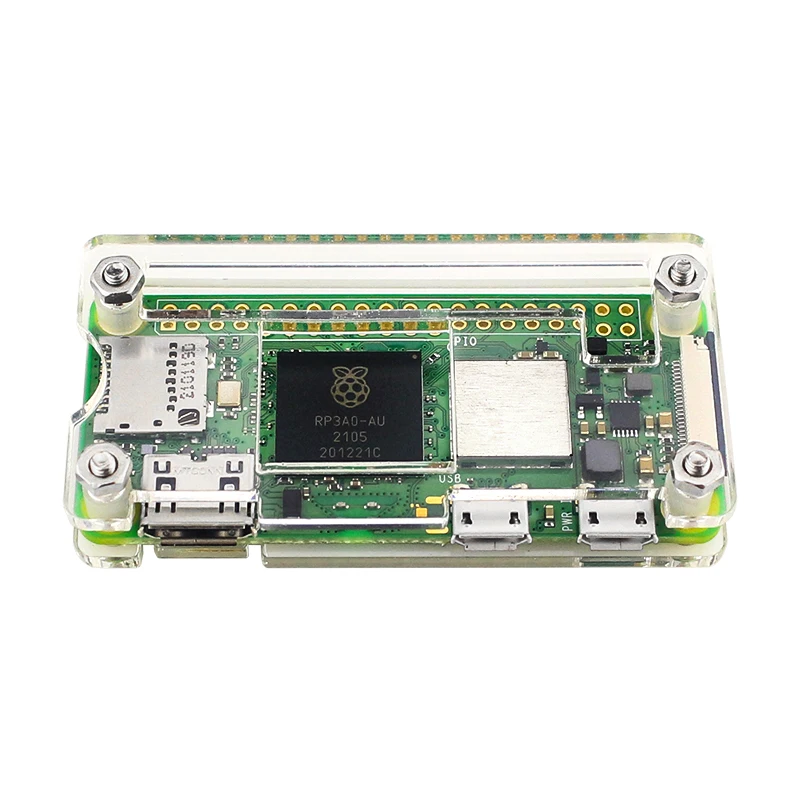

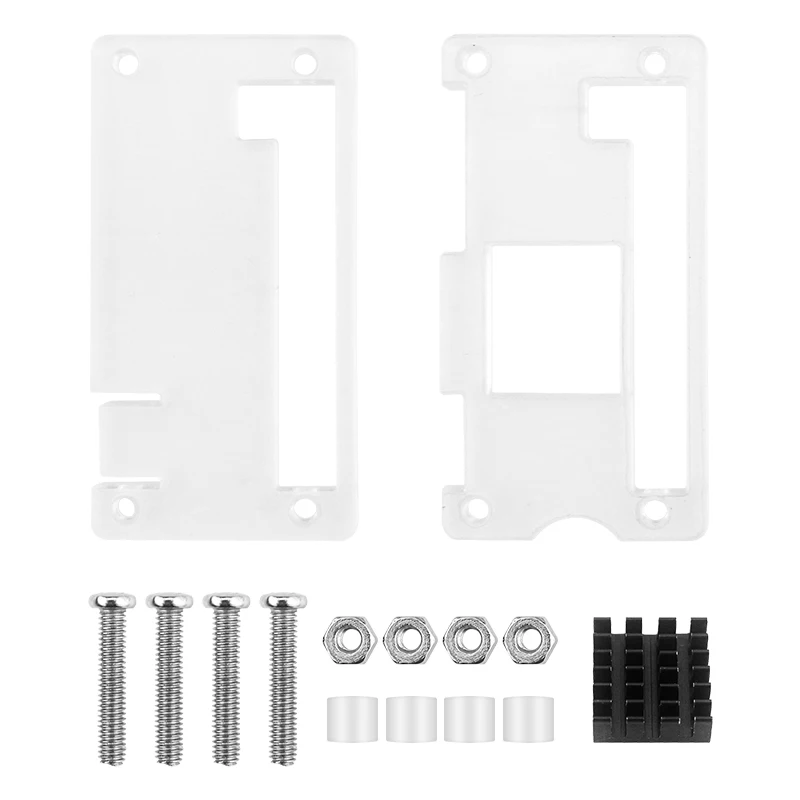

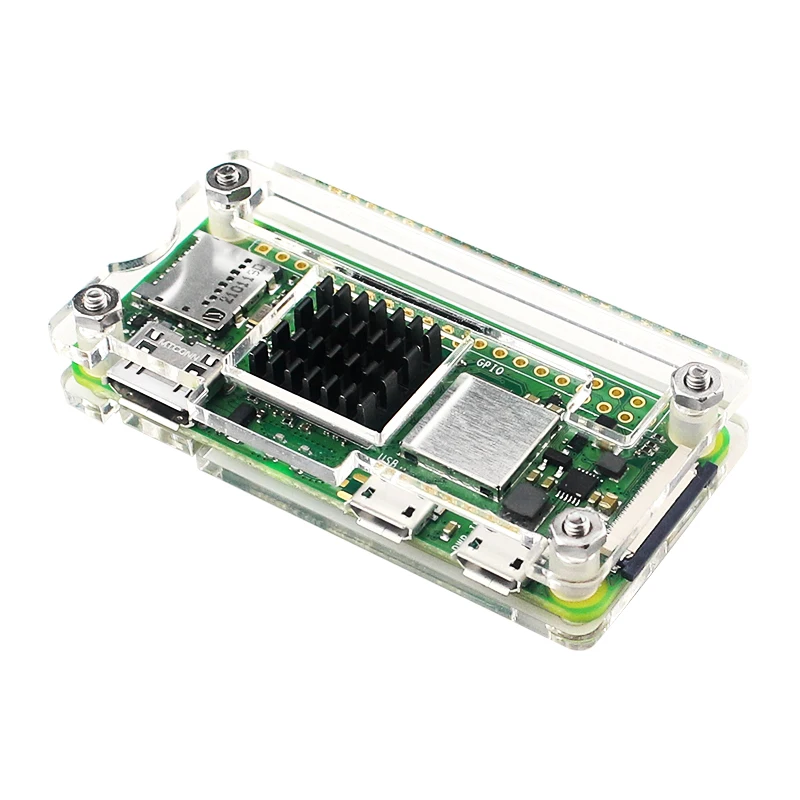

Acrylic Case

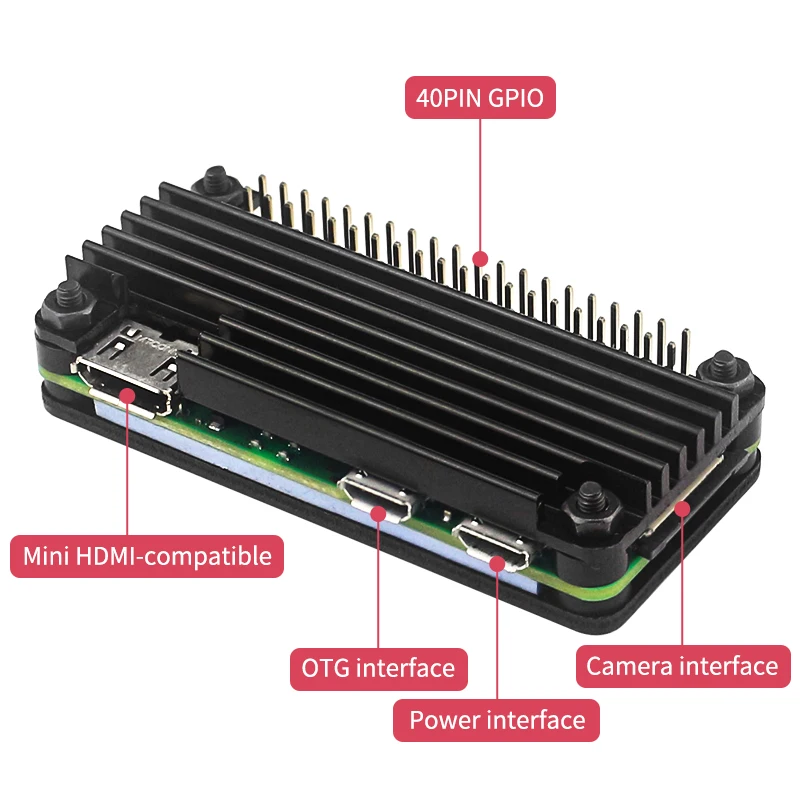

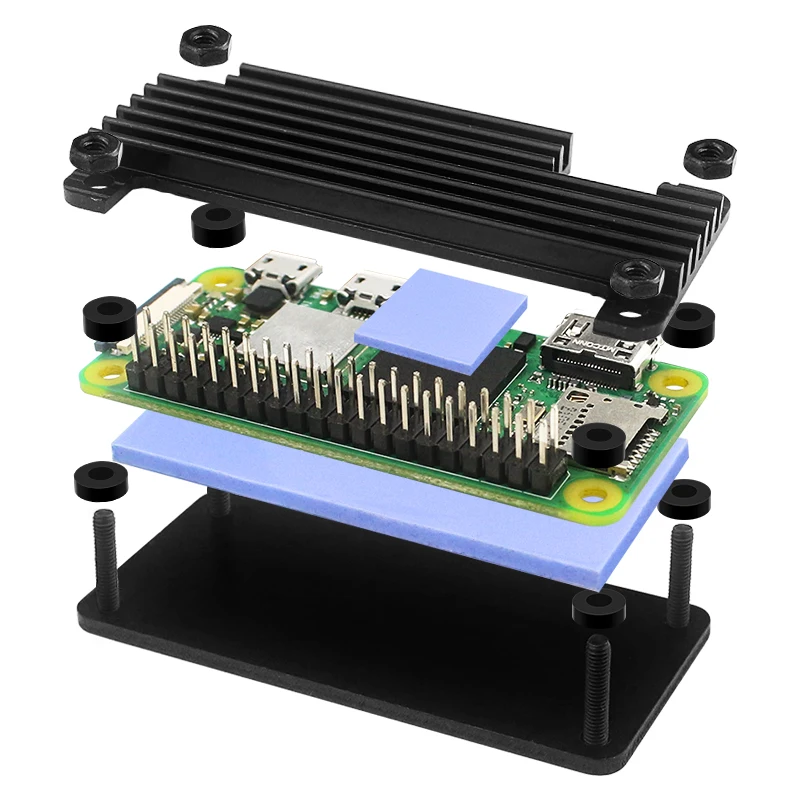

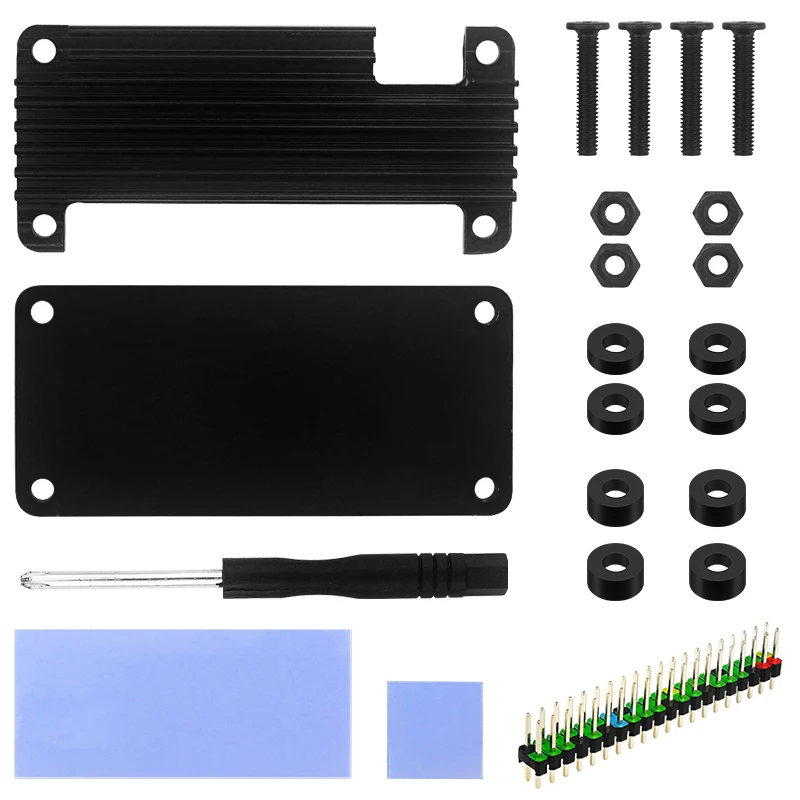

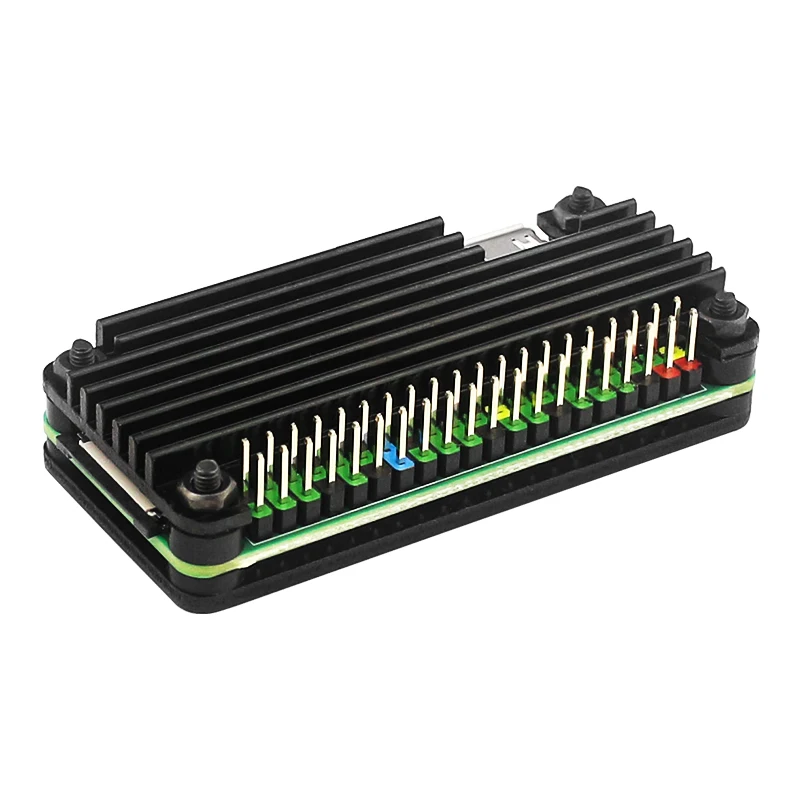

Aluminum Case

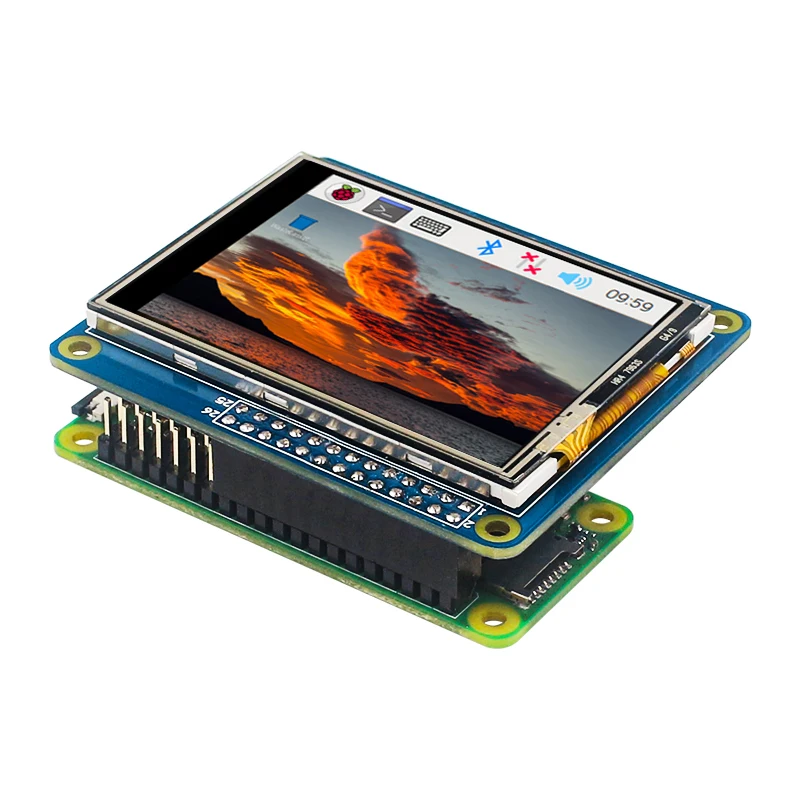

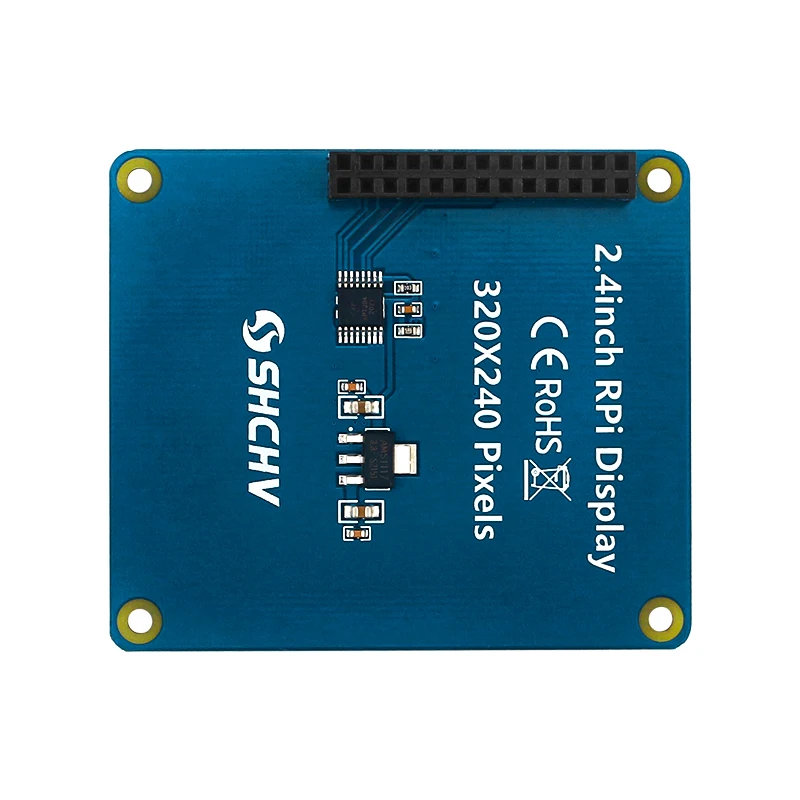

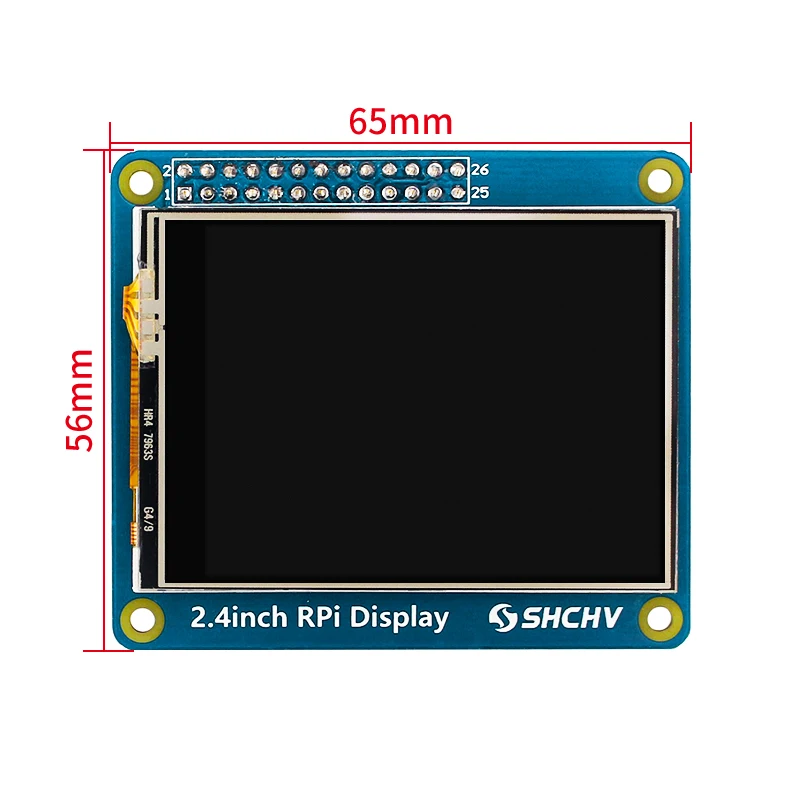

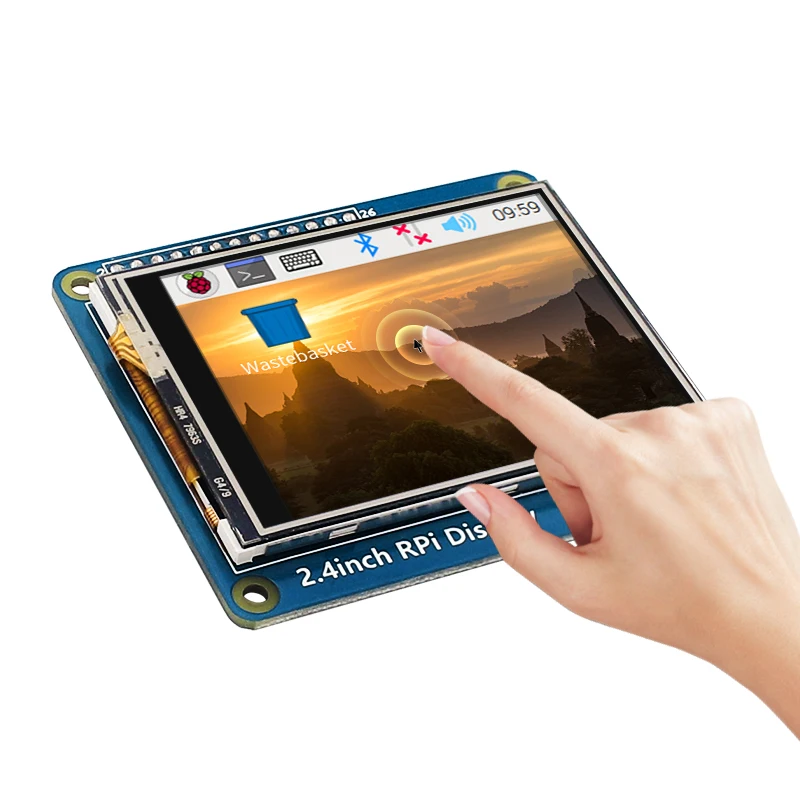

2.4 Inch Touch Screen
Please note before purchasing:
Due to the architectural changes in the new version of the official Raspberry Pi system（Raspberry Pi OS） released in October 2023, this version of the system is not compatible with GPIO screens. Please use the official system released before October 2023. If later official systems can support GPIO screens, we will update this notice.
1. 2.4inch standard display with physical resolution of 320×240
2. SPI interface with resistive touch screen for touch control
3. Perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+,4B)
4. Support for Raspbian/Ubuntu/Kali systems, Provide driver, image, and online wiki guidance documents
Screen Size: 2.4inch
LCD Type: TFT
Module Interface: SPI
Resolution: 320*240 (Pixel)
Active Area: 36.72x48.96(mm)
Touch Screen Controller: XPT2046
LCD Driver IC: ILI9341
Backlight: LED
Power Consumption: 0.08A*5V
Operating Temperature:（℃） -20~60
Module PCB Size: 56.00x65.00(mm)
Please refer to this link to use it:
http://www.lcdwiki.com/2.4inch_RPi_Display_For_RPi_3A+

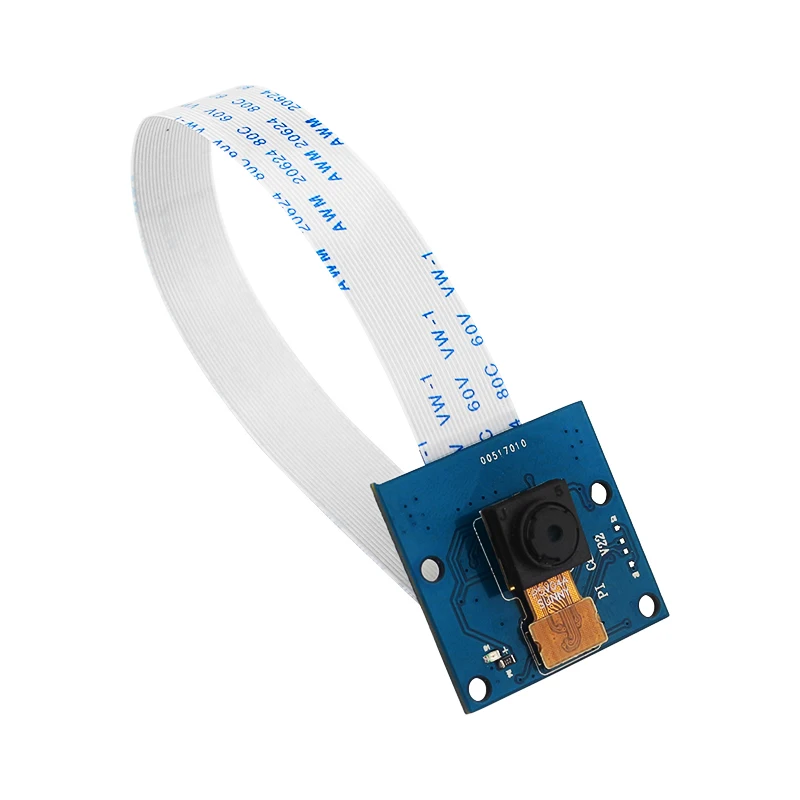

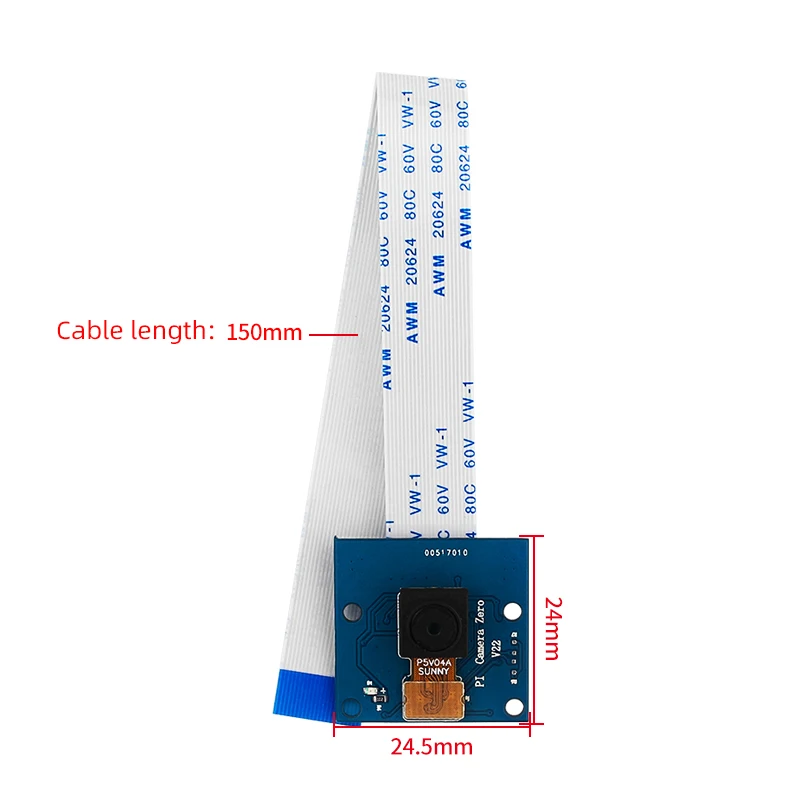

5MP OV5647 Camera
CMOS Size :1/4 Inch
Aperture : 2.8
Focal length : 3.4 mm
FOV : 69 degree
Sensor type : OmniVision OV5647 Color CMOS QSXGA (5-megapixel)
Pixel Count : 2592 x 1944
Full-frame SLR lens equivalent : 35 mm
Fixed Focus: 1 m to infinity
Video : 1080p at 30 fps with codec H.264 (AVC)
Up to 90 fps Video at VGA
Board size : 25 x 24 mm (not including flex cable)

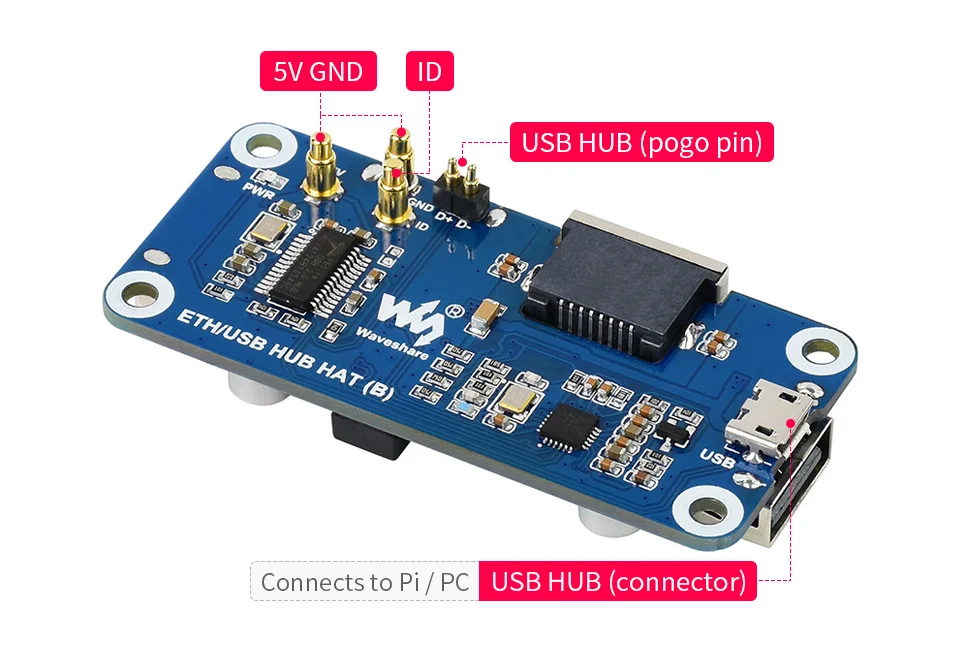

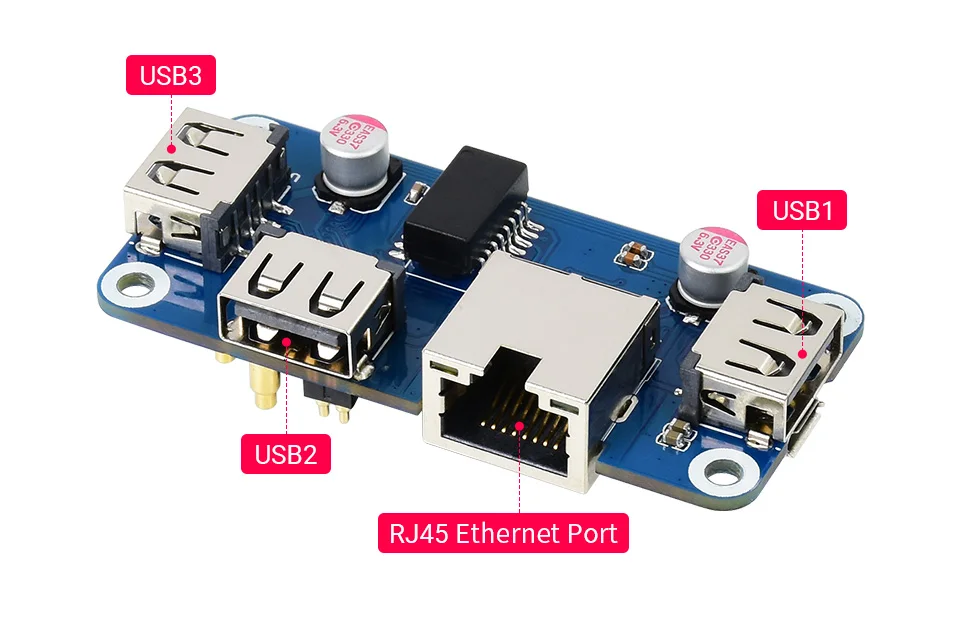

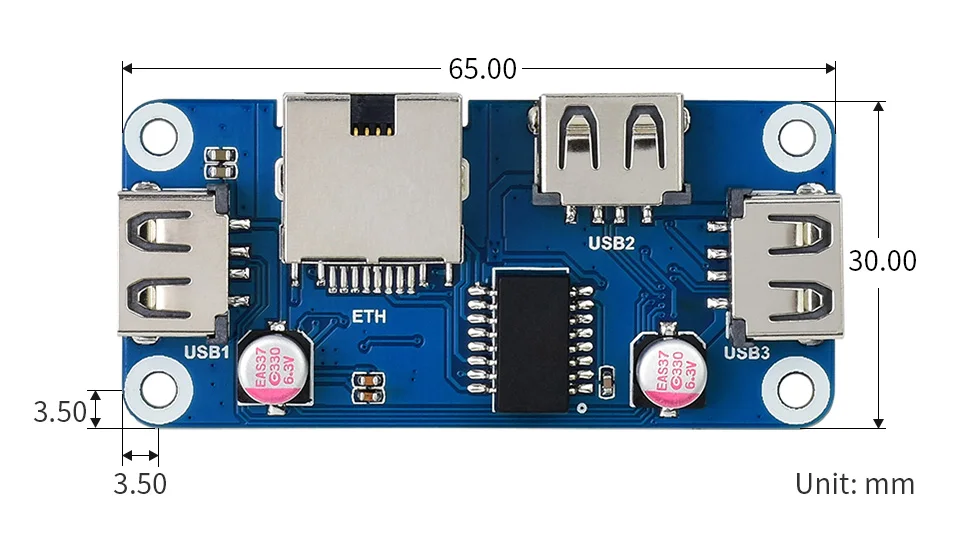

PoE Ethernet USB HAT
Refer this link to use it
https://www.waveshare.com/wiki/USB_HUB_HAT_(B)
