Zhenshi

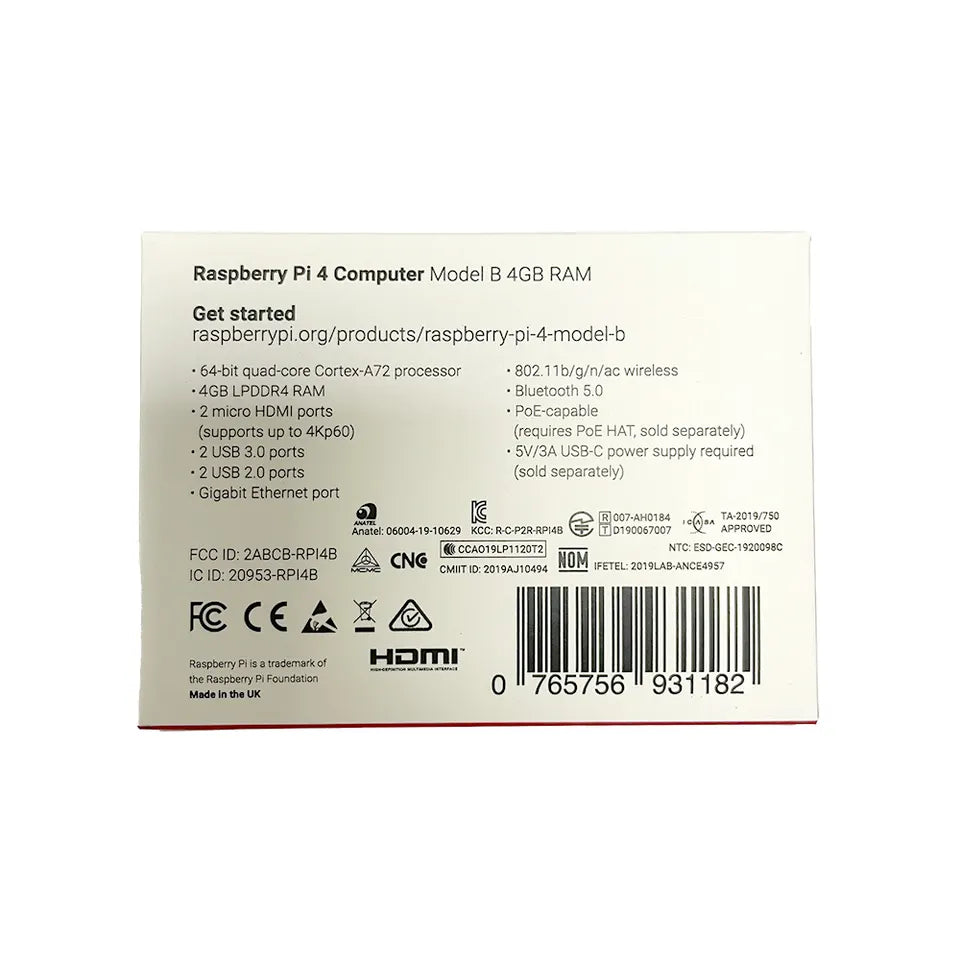

Raspberry Pi 4 4GB/8GB RAM Model B Single Development Board Quad Core 64bit with Wi-Fi & Bluetooth

Raspberry Pi 4 4GB/8GB RAM Model B Single Development Board Quad Core 64bit with Wi-Fi & Bluetooth

Regular price $72.00 USD
Regular price Sale price $72.00 USD
Sale Sold out
Shipping calculated at checkout.
RAM
Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x 86 PC systems.

This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HD MI ports, hardware video decode at up to 4Kp60, up to 8GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).

The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.

Specification

Processor:
Broad-com BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory:
4GB/ 8GB (depending on selection) LPDDR4 with on-die ECC
Connectivity:
2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE Gigabit Ethernet
2 × USB 3.0 ports
2 × USB 2.0 ports.
GPIO:
Standard 40-pin GPIO header
(fully backwards-compatible with previous boards)
Video & sound:
2 × micro HD MI ports (up to 4Kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
Multimedia:
H.265 (4Kp60 decode);
H.264 (1080p60 decode, 1080p30 encode);
OpenGL ES 3.0 graphics
SD card support:
Micro SD card slot for loading operating system and data storage
Input power:
5V DC via USB-C connector (minimum 3A1 )
5V DC via GPIO header (minimum 3A1 )
Power over Ethernet (PoE)–enabled
(requires separate PoE HAT)
Operating temperature:
0°C to +50°C
Production lifetime:
The Raspberry Pi 4 Model B will remain in production until at least January 2026.
View full details
